Access

window

Blade

Screws

Fiber washers

Figure 14

Outlet box

Hanger

bracket

Hanger

ball

Canopy

Canopy

cover

Figure 15

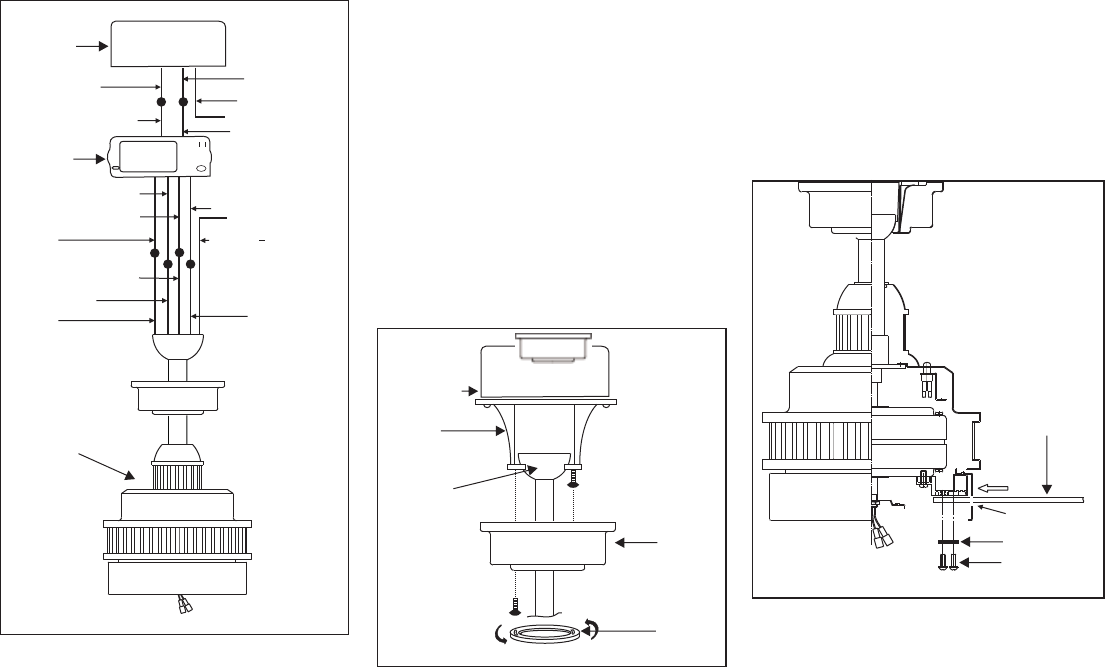

7. Blade installation

Rotate motor until holes become visible

through the motor access window. Align the

holes from the blade to the holes from the

motor and secure in place with screws and

fiber washers provided. (Fig. 15)

Fan

White (neutral)

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Orange

(for upper light)

Orange

(for upper light)

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue (for bottom light)

Blue (for bottom light)

Black (motor)

Figure 13

6. Finishing the

Installation

Step 1.

Step 2. Slide the canopy up to ceiling and over

the screw on hanger bracket. Rotate canopy

clockwise and tighten the screws. Next, while

holding the canopy with one hand, slide the

canopy cover over the screws and rotate

clockwise until tight. Note: adjust the canopy

screws as necessary until the canopy and

canopy cover are snug. (Fig. 14)

Remove 1 of 2 screws from the

hanger bracket.
